Transformer Oil Facility

OIL FARM

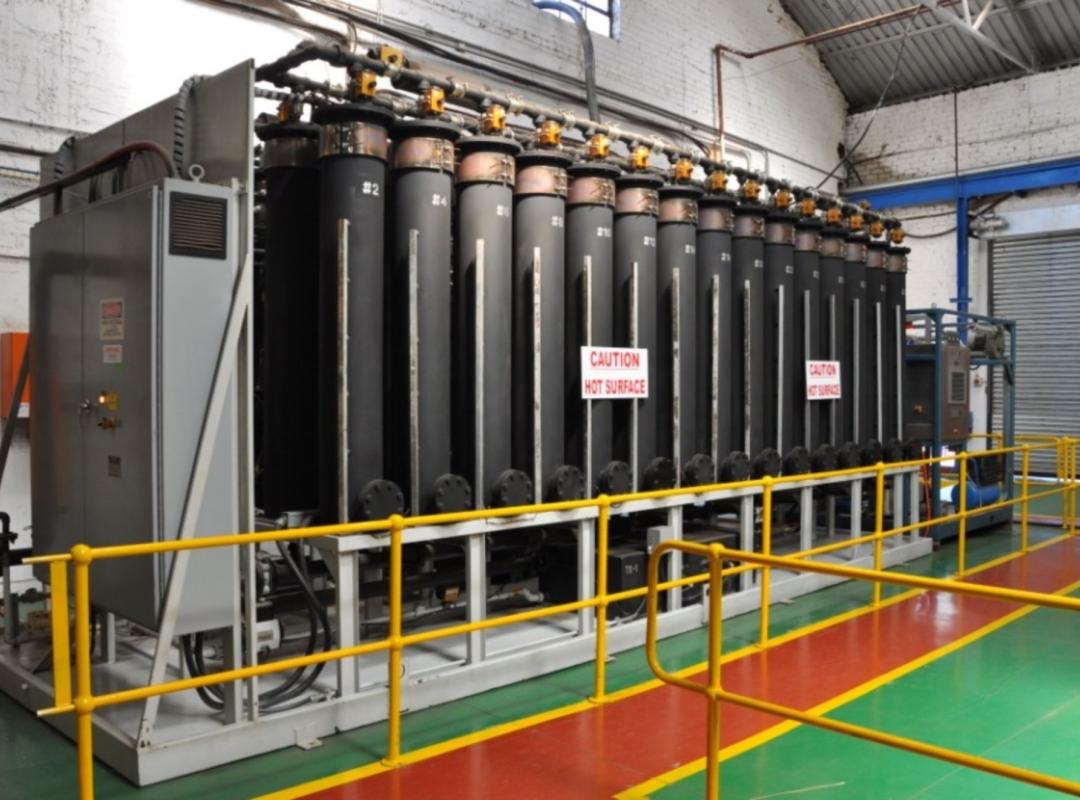

60 column ENERVAC® Oil Regeneration Plant with a capacity of up to 400,000L/month.
3 x Oil purifiers, 1,500-10,000L per hour capacity.

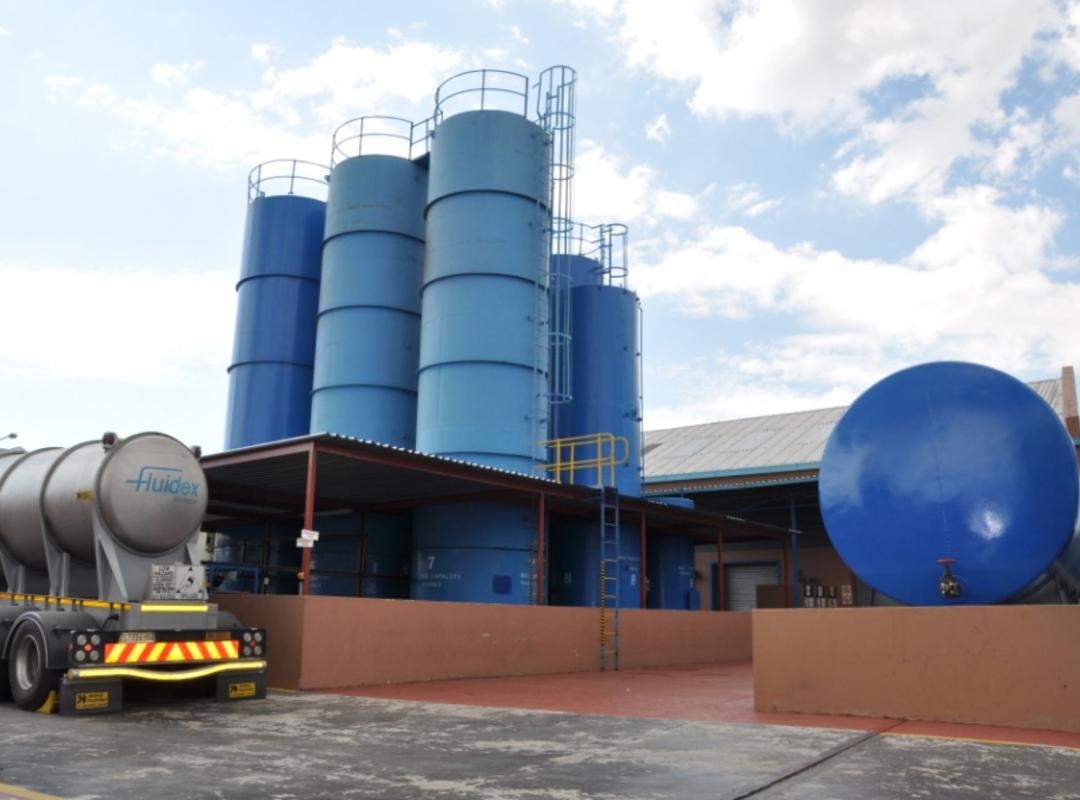

Total oil storage capacity on site of ~1 Million Litres – Virgin, Regenerated, Intermediate, Used & Scrap

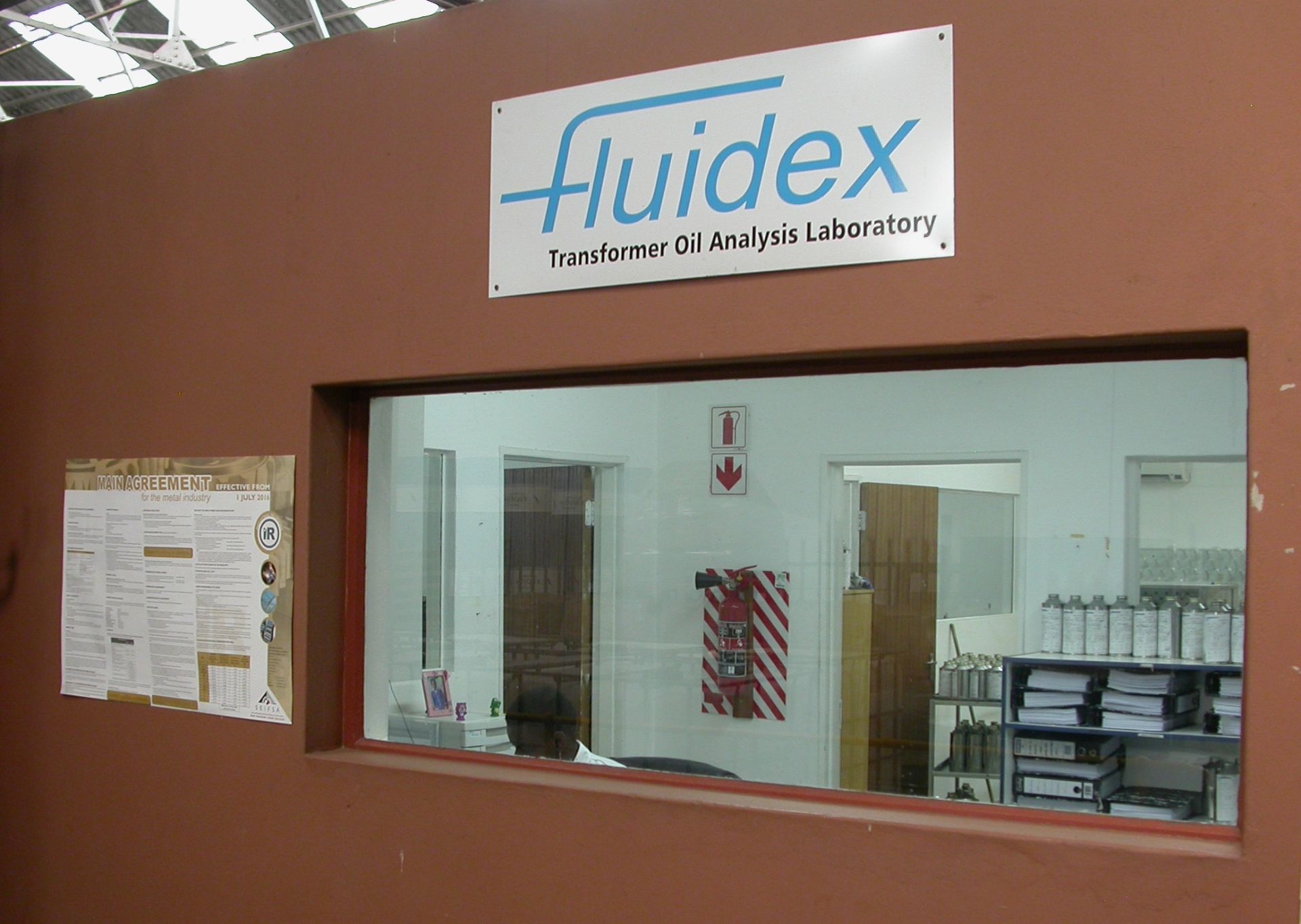

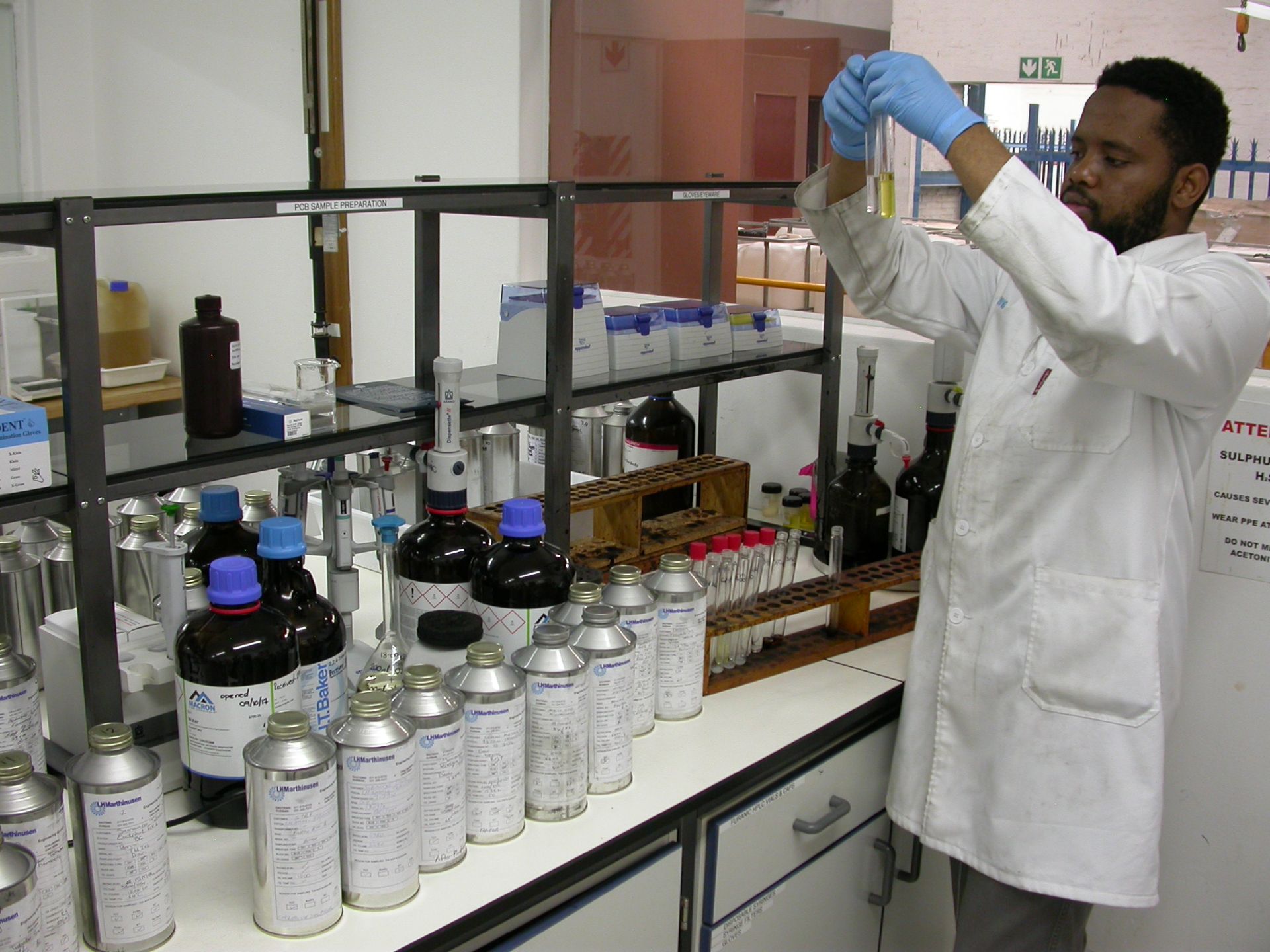

OIL LABORATORY

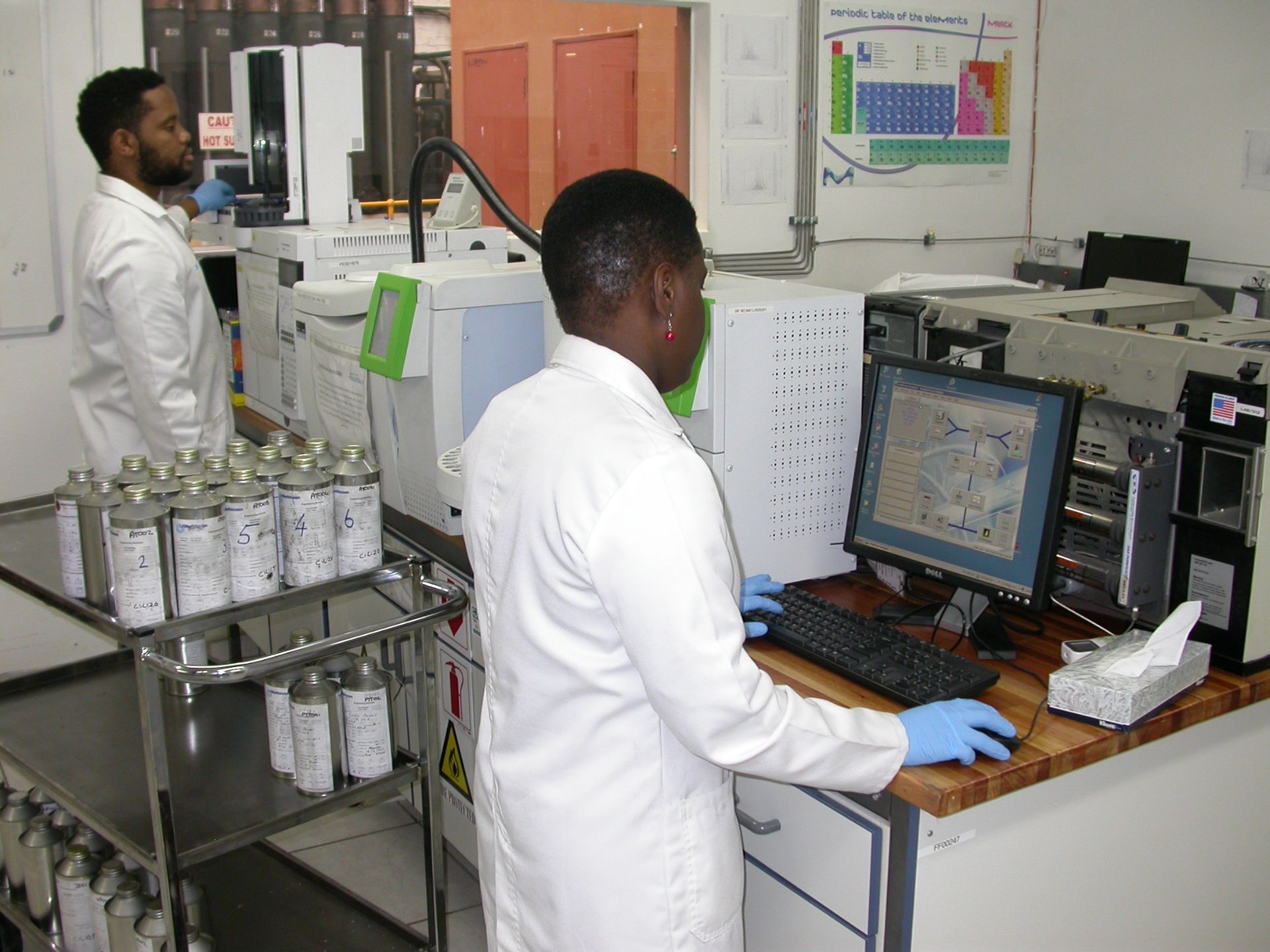

Dissolved Gas Analysis – Perkin Elmer Arnel Clarus 500 GC with a Turbo Matrix Headspace auto sampler capable of loading 40 samples.

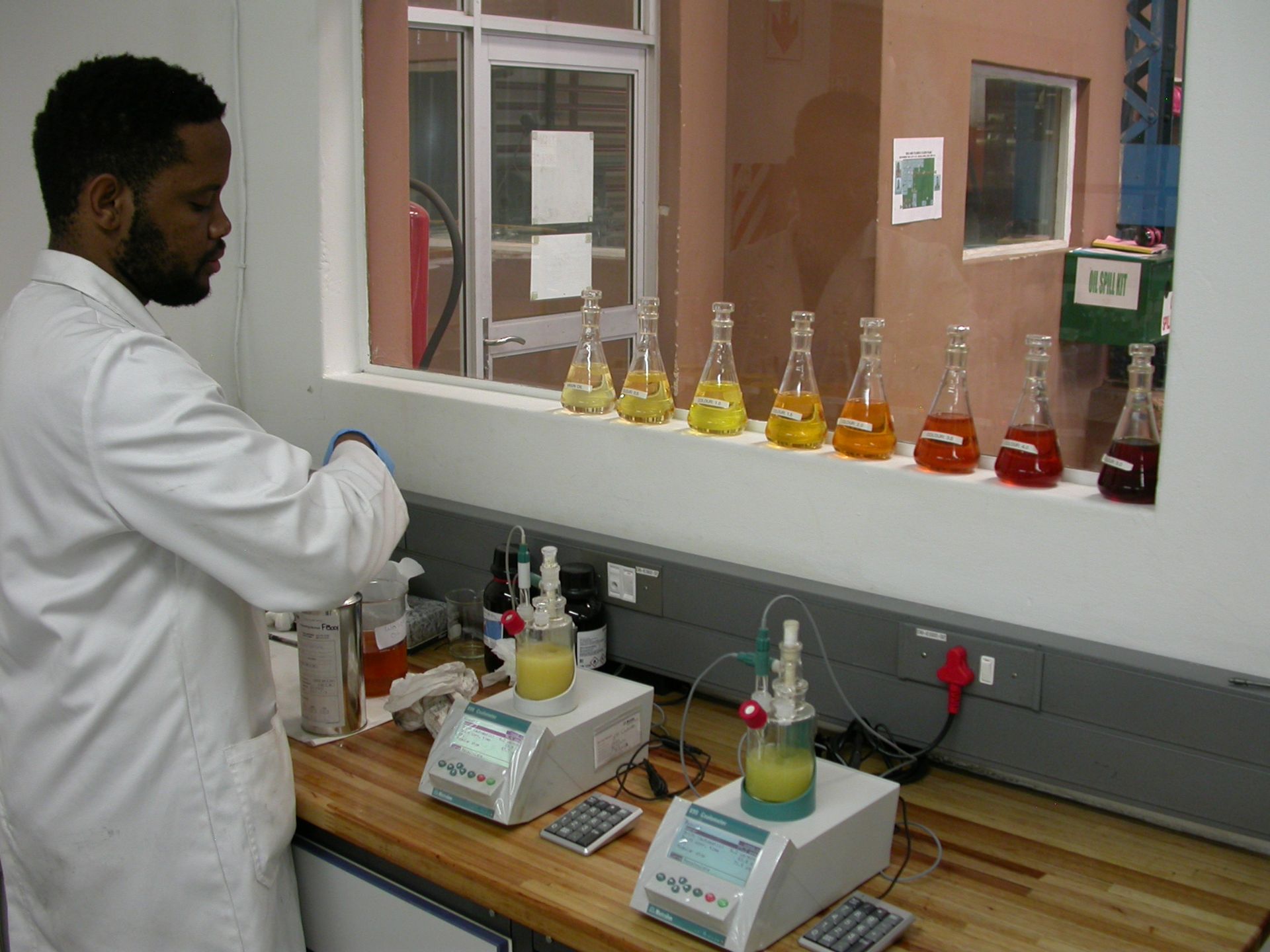

Moisture Analysis – 2 x Metrohm 899 Karl Fischer Coulometers
Polychlorinated Biphenyls analysis (PCB) - Agilent 7890A GC system with two Injection towers (enabling us to analyse two samples at once) and a 7693 Auto sampler capable of loading up to 150 samples. Fluidex can identify and quantify three Aroclors (AR1260, AR1254, AR1242)
Dielectric Strength – 2 x BAUR dielectric strength testers (DTA 100C and DPA75) and 1 x Meggar dielectric strength OTS80 AF/2
Total Acid Number (Acidity)
Furanic Analysis – Perkin Elmer HPLC series 200 with an auto sampler capable of loading up to 100 samples
Interfacial Tension – TD 2 Lauda
FTIR – Perkin Elmer BX System for the determination of silicone fluid contamination in mineral oil.
Density
Corrosive Sulphur - Copper Strip test BS 2000 Part 315
Viscosity @ 40 °C
Oxidation Stability
Colour
Flash point
Dissipation Factor (Tan Delta) – BAUR DTL tester

Our transformer repair facility is fully equipped to handle repairs and refurbishments for transformers ranging from 10kVA to 200MVA at 275kV, including reactors and regulators. Our advanced equipment and expert technicians ensure that your transformer components are returned to full operational capacity, adhering to the highest industry standards

Facility Features:

160-Ton Overhead Crane Capacity
Our facility is capable of handling large transformers, allowing us to manage even the most complex repair and refurbishment projects efficiently and safely.
Automated Vacuum Ovens
Equipped with nitrogen injection and oil spraying processing, our three vacuum ovens ensure that all active parts of the transformers are dried to the highest standards before tanking. This process is critical for ensuring the longevity and reliability of transformer components.
Test Bay Facility
Our test bay can perform tests up to 350kV and 200Hz, ensuring that all transformers are tested in compliance with IEC and BS standards
Pressurised Electrical Assembly Facility
Our pressurised assembly area allows for precise and safe electrical assembly, reducing the risk of contamination and ensuring the highest levels of build quality for all transformer components.
MV Impulse Test Facility
We also provide medium-voltage impulse testing to ensure that your transformers can withstand electrical stresses and meet all required safety standards.
In addition to repairs and refurbishments, LH Marthinusen specializes in the manufacture of furnace, rectifier, dry type, and distribution transformers, as well as the complete repair of both underground and surface miniature substations. We offer end-to-end services to ensure that your transformers continue to operate efficiently, regardless of the application.

We offer custom transformer design services to meet your specific operational requirements. We design and manufacture transformers up to 80MVA and 275kV to match customer specifications, ensuring tailored solutions that provide reliable performance in demanding environments.

Our team utilizes in-house 3D CAD design capabilities, which allow us to create custom designs that meet the precise needs of your project.

With years of experience in the industry, LH Marthinusen is recognized for delivering reliable transformer solutions across a range of industries, including rail, mining, energy, and manufacturing.
